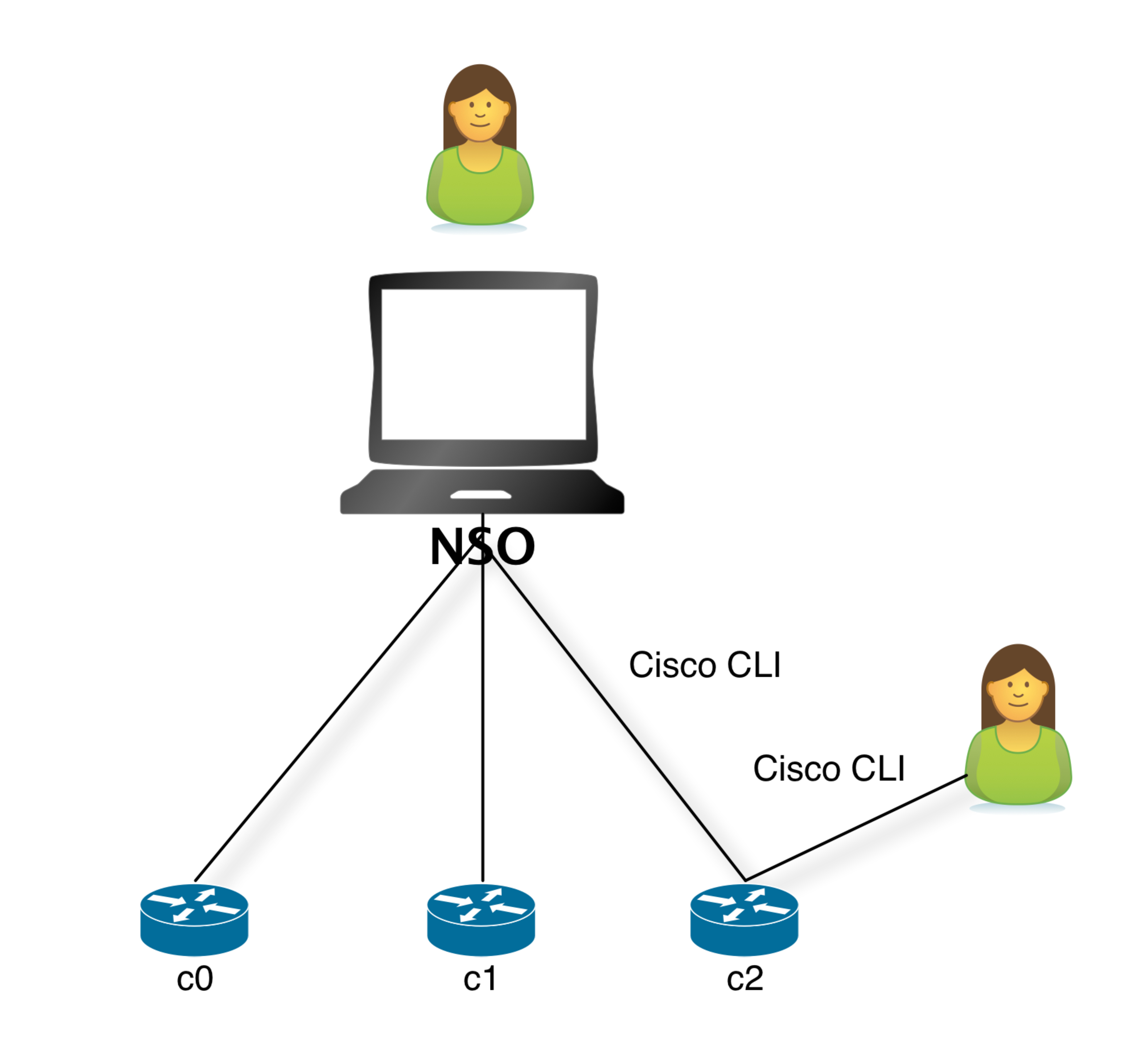

# Basic Operations This section helps you to get started with NSO, learn basic operational scenarios, and get acquainted with the most common CLI commands. ## Setup Make sure that you have installed NSO and that you have sourced the `ncsrc` file in `$NCS_DIR`. This sets up the paths and environment variables to run NSO. As this must be done every time before running NSO, it is recommended to add it to your profile. We will use the NSO network simulator to simulate three Cisco IOS routers. NSO will talk Cisco CLI to those devices. You will use the NSO CLI and Web UI to perform the tasks. Sometimes you will use the native Cisco device CLI to inspect configuration or do out-of-band changes.

The First Example

\ Note that both the NSO software (NCS) and the simulated network devices run on your local machine. ## Starting the Simulator To start the simulator: 1. Go to `examples.ncs/getting-started/using-ncs/1-simulated-cisco-ios`. First of all, we will generate a network simulator with three Cisco devices. They will be called `c0`, `c1`, and `c2`.\\ {% hint style="info" %} Most of this section follows the procedure in the `README` file, so it is useful to have it opened as well. {% endhint %} \ Perform the following command:\\ ```bash $ ncs-netsim create-network $NCS_DIR/packages/neds/cisco-ios 3 c ``` \ This creates three simulated devices all running Cisco IOS and they will be named `c0`, `c1`, `c2`.2. Start the simulator.\\ ```bash $ ncs-netsim start DEVICE c0 OK STARTED DEVICE c1 OK STARTED DEVICE c2 OK STARTED ``` 2. Run the CLI toward one of the simulated devices.\\ ```bash $ ncs-netsim cli-i c1 admin connected from 127.0.0.1 using console * c1> enable c1# show running-config class-map m match mpls experimental topmost 1 match packet length max 255 match packet length min 2 match qos-group 1 ! ... c1# exit ``` \ This shows that the device has some initial configurations. ## Starting NSO and Reading Device Configuration The previous step started the simulated Cisco devices. It is now time to start NSO. 1. The first action is to prepare directories needed for NSO to run and populate NSO with information on the simulated devices. This is all done with the `ncs-setup` command. Make sure that you are in the `examples.ncs/getting-started/using-ncs/1-simulated-cisco-ios` directory. (Again ignore the details for the time being).\\ ```bash $ ncs-setup --netsim-dir ./netsim --dest . ``` \ Note the `.` at the end of the command referring to the current directory. What the command does is create directories needed for NSO in the current directory and populate NSO with devices that are running in netsim. We call this the "run-time" directory. 2. Start NSO.\\ ```bash $ ncs ``` 3. Start the NSO CLI as the user `admin` with a Cisco XR-style CLI.\\ ```bash $ ncs_cli -C -u admin ``` \ NSO also supports a J-style CLI, that is started by using a -J modification to the command like this. ```bash $ ncs_cli -J -u admin ``` \ Throughout this user guide, we will show the commands in Cisco XR style. 4. At this point, NSO only knows the address, port, and authentication information of the devices. This management information was loaded to NSO by the setup utility. It also tells NSO how to communicate with the devices by using NETCONF, SNMP, Cisco IOS CLI, etc. However, at this point, the actual configuration of the individual devices is unknown.\\ ```cli admin@ncs# show running-config devices device devices device c0 address 127.0.0.1 port 10022 ... authgroup default device-type cli ned-id cisco-ios state admin-state unlocked config no ios:service pad no ios:ip domain-lookup no ios:ip http secure-server ios:ip source-route ! ! ... ``` Let us analyze the above CLI command. First of all, when you start the NSO CLI it starts in operational mode, so to show configuration data, you have to explicitly run `show running-config`. NSO manages a list of devices, each device is reached by the path `devices device "name"` . You can use standard tab completion in the CLI to learn this. The `address` and `port` fields tells NSO where to connect to the device. For now, they all live in local host with different ports. The `device-type` structure tells NSO it is a CLI device and the specific CLI is supported by the Network Element Driver (NED) `cisco-ios`. A more detailed explanation of how to configure the device-type structure and how to choose NEDs will be addressed later in this guide. So now NSO can try to connect to the devices: ```cli admin@ncs# devices connect connect-result { device c0 result true info (admin) Connected to c0 - 127.0.0.1:10022 } connect-result { device c1 result true info (admin) Connected to c1 - 127.0.0.1:10023 } connect-result { device c2 result true info (admin) Connected to c2 - 127.0.0.1:10024 }.... ``` NSO does not need to have the connections active continuously, instead, NSO will establish a connection when needed and connections are pooled to conserve resources. At this time, NSO can read the configurations from the devices and populate the configuration database, CDB. The following command will synchronize the configurations of the devices with the CDB and respond with `true` if successful: ```cli admin@ncs# devices sync-from sync-result { device c0 result true }.... ``` The NSO data store, CDB, will store the configuration for every device at the path `devices device "name" config`, everything after this path is the configuration in the device. NSO keeps this synchronized. The synchronization is managed with the following principles: 1. At initialization, NSO can discover the configuration as shown above. 2. The modus operandi when using NSO to perform configuration changes is that the network engineer uses NSO (CLI, WebUI, REST,...) to modify the representation in NSO CDB. The changes are committed to the network as a transaction that includes the actual devices. Only if all changes happen on the actual devices, will it be committed to the NSO data store. The transaction also covers the devices so if any of the devices participating in the transaction fails, NSO will roll back the configuration changes on all modified devices. This works even in the case of devices that do not natively support roll-back like Cisco IOS CLI. 3. NSO can detect out-of-band changes and reconcile them by either updating the CDB or modifying the configuration on the devices to reflect the currently stored configuration. NSO only needs to be synchronized with the devices in the event of a change being made outside of NSO. Changes made using NSO will reflected in both the CDB and the devices. The following actions do not need to be taken: 1. Perform configuration change via NSO. 2. Perform sync-from action. The above incorrect (or not necessary) sequence stems from the assumption that the NSO CLI talks directly to the devices. This is not the case; the northbound interfaces in NSO modify the configuration in the NSO data store, NSO calculates a minimum difference between the current configuration and the new configuration, giving only the changes to the configuration to the NEDS that runs the commands to the devices. All this as one single change-set.

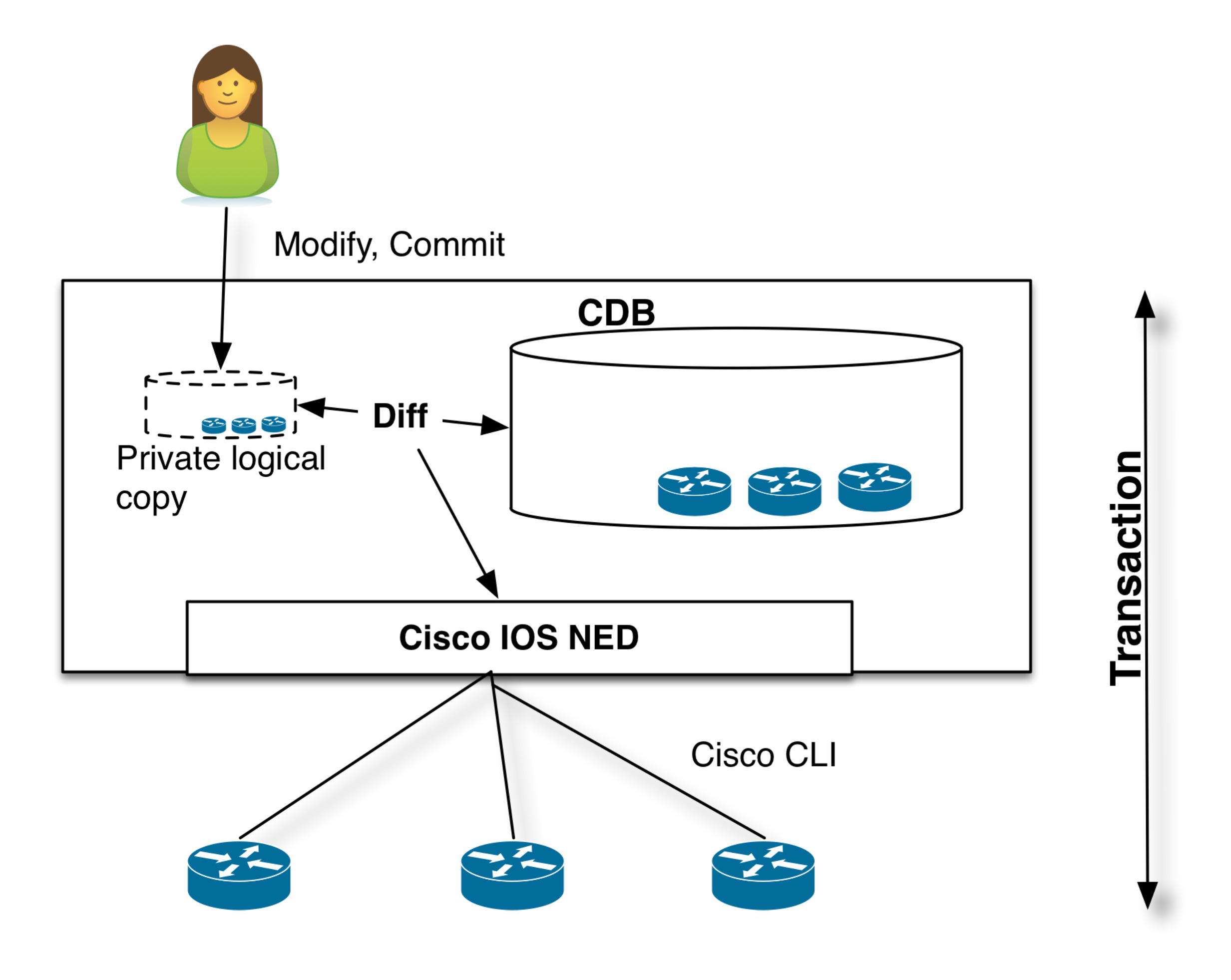

Device Transaction

View the configuration of the `c0` device using the command: ```cli admin@ncs# show running-config devices device c0 config devices device c0 config no ios:service pad ios:ip vrf my-forward bgp next-hop Loopback 1 ! ... ``` Or, show a particular piece of configuration from several devices: ```cli admin@ncs# show running-config devices device c0..2 config ios:router devices device c0 config ios:router bgp 64512 aggregate-address 10.10.10.1 255.255.255.251 neighbor 1.2.3.4 remote-as 1 neighbor 1.2.3.4 ebgp-multihop 3 neighbor 2.3.4.5 remote-as 1 neighbor 2.3.4.5 activate neighbor 2.3.4.5 capability orf prefix-list both neighbor 2.3.4.5 weight 300 ! ! ! devices device c1 config ios:router bgp 64512 ... ``` Or, show a particular piece of configuration from all devices: ```cli admin@ncs# show running-config devices device config ios:router ``` The CLI can pipe commands, try TAB after `|` to see various pipe targets: ```cli admin@ncs# show running-config devices device config ios:router \ | display xml | save router.xml ``` The above command shows the router config of all devices as XML and then saves it to a file `router.xml`. ## Writing Device Configuration 1. To change the configuration, enter configure mode.\\ ```cli admin@ncs# config Entering configuration mode terminal admin@ncs(config)# ``` 2. Change or add some configuration across the devices, for example:\\ ```cli admin@ncs(config)# devices device c0..2 config ios:router bgp 64512 neighbor 10.10.10.0 remote-as 64502 admin@ncs(config-router)# ``` ### Transaction Commit It is important to understand how NSO applies configuration changes to the network. At this point, the changes are local to NSO, no configurations have been sent to the devices yet. Since the NSO Configuration Database, CDB is in sync with the network, NSO can calculate the minimum diff to apply the changes to the network. The command below compares the ongoing changes with the running database: ```cli admin@ncs(config-router)# top admin@ncs(config)# show configuration devices device c0 config ios:router bgp 64512 neighbor 10.10.10.0 remote-as 64502 ... ``` It is possible to dry-run the changes to see the native Cisco CLI output (in this case almost the same as above): ```cli admin@ncs(config)# commit dry-run outformat native native { device { name c0 data router bgp 64512 neighbor 10.10.10.0 remote-as 64502 ! ... ``` The changes can be committed to the devices and the NSO CDB simultaneously with a single commit. In the commit command below, we pipe to details to understand the actions being taken. ```cli admin@ncs% commit | details ``` ### Transaction Rollback Changes are committed to the devices and the NSO database as one transaction. If any of the device configurations fail, all changes will be rolled back and the devices will be left in the state that they were in before the commit and the NSO CDB will not be updated. There are numerous options to the commit command which will affect the behavior of the atomic transactions: ```cli admin@ncs(config)# commit TAB Possible completions: and-quit Exit configuration mode check Validate configuration comment Add a commit comment commit-queue Commit through commit queue label Add a commit label no-confirm No confirm no-networking Send nothing to the devices no-out-of-sync-check Commit even if out of sync no-overwrite Do not overwrite modified data on the device no-revision-drop Fail if device has too old data model save-running Save running to file --- dry-run Show the diff but do not perform commit ``` As seen by the details output, NSO stores a roll-back file for every commit so that the whole transaction can be rolled back manually. The following is an example of a rollback file: ```cli admin@ncs(config)# do file show logs/rollback1000 Possible completions: rollback10001 rollback10002 rollback10003 \ rollback10004 rollback10005 admin@ncs(config)# do file show logs/rollback10005 # Created by: admin # Date: 2014-09-03 14:35:10 # Via: cli # Type: delta # Label: # Comment: # No: 10005 ncs:devices { ncs:device c0 { ncs:config { ios:router { ios:bgp 64512 { delete: ios:neighbor 10.10.10.0; } } } } ``` (Viewing files as an operational command, prefixing a command in configuration mode with `do` executes in operational mode.) To perform a manual rollback, first load the rollback file: ```cli admin@ncs(config)# rollback-files apply-rollback-file fixed-number 10005 ``` `apply-rollback-file` by default restores to that saved configuration, adding `selective` as a parameter allows you to just roll back the delta in that specific rollback file. Show the differences: ```cli admin@ncs(config)# show configuration devices device c0 config ios:router bgp 64512 no neighbor 10.10.10.0 remote-as 64502 ! ! ! devices device c1 config ios:router bgp 64512 no neighbor 10.10.10.0 remote-as 64502 ! ! ! devices device c2 config ios:router bgp 64512 no neighbor 10.10.10.0 remote-as 64502 ! ! ! ``` Commit the rollback: ```cli admin@ncs(config)# commit Commit complete. ``` ### Trace Log A trace log can be created to see what is going on between NSO and the device CLI enable trace. Use the following command to enable trace: ```cli admin@ncs(config)# devices global-settings trace raw trace-dir logs admin@ncs(config)# commit Commit complete. admin@ncs(config)# devices disconnect ``` Note that the trace settings only take effect for new connections, so it is important to disconnect the current connections. Make a change to for example `c0`: ```cli admin@ncs(config)# devices device c0 config ios:interface FastEthernet 1/2 ip address 192.168.1.1 255.255.255.0 admin@ncs(config-if)# commit dry-run outformat native admin@ncs(config-if)# commit ``` Note the use of the command `commit dry-run outformat native`. This will display the net result device commands that will be generated over the native interface without actually committing them to the CDB or the devices. In addition, there is the possibility to append the `reverse` flag that will display the device commands for getting back to the current running state in the network if the commit is successfully executed. Exit from the NSO CLI and return to the Unix Shell. Inspect the CLI trace: ``` less logs/ned-cisco-ios-c0.trace ``` ## More on Device Management ### Device Groups As seen above, ranges can be used to send configuration commands to several devices. Device groups can be created to allow for group actions that do not require naming conventions. A group can reference any number of devices. A device can be part of any number of groups, and groups can be hierarchical. The command sequence below creates a group of core devices and a group with all devices. Note that you can use tab completion when adding the device names to the group. Also, note that it requires configuration mode. (If you are still in the Unix Shell from the steps above, do `$ncs_cli -C -u admin`). ```cli admin@ncs(config)# devices device-group core device-name [ c0 c1 ] admin@ncs(config-device-group-core)# commit admin@ncs(config)# devices device-group all device-name c2 device-group core admin@ncs(config-device-group-all)# commit admin@ncs(config)# show full-configuration devices device-group devices device-group all device-name [ c2 ] device-group [ core ] ! devices device-group core device-name [ c0 c1 ] ! admin@ncs(config)# do show devices device-group NAME MEMBER INDETERMINATES CRITICALS MAJORS MINORS WARNINGS ------------------------------------------------------------------------- all [ c0 c1 c2 ] 0 0 0 0 0 core [ c0 c1 ] 0 0 0 0 0 ``` Note well the `do show` which shows the operational data for the groups. Device groups have a member attribute that shows all member devices, flattening any group members. Device groups can contain different devices as well as devices from different vendors. Configuration changes will be committed to each device in its native language without needing to be adjusted in NSO. You can, for example, at this point use the group to check if all `core` are in sync: ```cli admin@ncs# devices device-group core check-sync sync-result { device c0 result in-sync } sync-result { device c1 result in-sync } ``` ### Device Templates Assume that we would like to manage permit lists across devices. This can be achieved by defining templates and applying them to device groups. The following CLI sequence defines a tiny template, called `community-list` : ```cli admin@ncs(config)# devices template community-list ned-id cisco-ios-cli-3.0 config ios:ip community-list standard test1 permit permit-list 64000:40 admin@ncs(config-permit-list-64000:40)# commit Commit complete. admin@ncs(config-permit-list-64000:40)# top admin@ncs(config)# show full-configuration devices template devices template community-list config ios:ip community-list standard test1 permit permit-list 64000:40 ! ! ! ! [ok][2013-08-09 11:27:28] ``` This can now be applied to a device group: ```cli admin@ncs(config)# devices device-group core apply-template \ template-name community-list admin@ncs(config)# show configuration devices device c0 config ios:ip community-list standard test1 permit 64000:40 ! ! devices device c1 config ios:ip community-list standard test1 permit 64000:40 ! ! admin@ncs(config)# commit dry-run outformat native native { device { name c0 data ip community-list standard test1 permit 64000:40 } device { name c1 data ip community-list standard test1 permit 64000:40 } } admin@ncs(config)# commit Commit complete. ``` What if the device group `core` contained different vendors? Since the configuration is written in IOS the above template would not work on Juniper devices. Templates can be used on different device types (read NEDs) by using a prefix for the device model. The template would then look like: ``` template community-list { config { junos:configuration { ... } ios:ip { ... } ``` The above indicates how NSO manages different models for different device types. When NSO connects to the devices, the NED checks the device type and revision and returns that to NSO. This can be inspected (note, in operational mode): ```cli admin@ncs# show devices device module NAME NAME REVISION FEATURES DEVIATIONS ------------------------------------------------------------------- c0 tailf-ned-cisco-ios 2014-02-12 - - tailf-ned-cisco-ios-stats 2014-02-12 - - c1 tailf-ned-cisco-ios 2014-02-12 - - tailf-ned-cisco-ios-stats 2014-02-12 - - c2 tailf-ned-cisco-ios 2014-02-12 - - tailf-ned-cisco-ios-stats 2014-02-12 - - ``` So here we see that `c0` uses a `tailf-ned-cisco-ios` module which tells NSO which data model to use for the device. Every NED package comes with a YANG data model for the device (except for third-party YANG NED for which the YANG device model must be downloaded and fixed before it can be used). This renders the NSO data store (CDB) schema, the NSO CLI, WebUI, and southbound commands. The model introduces namespace prefixes for every configuration item. This also resolves issues around different vendors using the same configuration command for different configuration elements. Note that every item is prefixed with `ios`: ```cli admin@ncs# show running-config devices device c0 config ios:ip community-list devices device c0 config ios:ip community-list 1 permit ios:ip community-list 2 deny ios:ip community-list standard s permit ios:ip community-list standard test1 permit 64000:40 ! ! ``` Another important question is how to control if the template merges the list or replaces the list. This is managed via tags. The default behavior of templates is to merge the configuration. Tags can be inserted at any point in the template. Tag values are `merge`, `replace`, `delete`, `create` and `nocreate`. Assume that `c0` has the following configuration: ```cli admin@ncs# show running-config devices device c0 config ios:ip community-list devices device c0 config ios:ip community-list 1 permit ios:ip community-list 2 deny ios:ip community-list standard s permit} ``` If we apply the template the default result would be: ```cli admin@ncs# show running-config devices device c0 config ios:ip community-list devices device c0 config ios:ip community-list 1 permit ios:ip community-list 2 deny ios:ip community-list standard s permit ios:ip community-list standard test1 permit 64000:40 ! ! ``` We could change the template in the following way to get a result where the permit list would be replaced rather than merged. When working with tags in templates, it is often helpful to view the template as a tree rather than a command view. The CLI has a display option for showing a curly-braces tree view that corresponds to the data-model structure rather than the command set. This makes it easier to see where to add tags. ```cli admin@ncs(config)# show full-configuration devices template devices template community-list config ios:ip community-list standard test1 permit permit-list 64000:40 ! ! ! ! admin@ncs(config)# show full-configuration devices \ template | display curly-braces template community-list { config { ios:ip { community-list { standard test1 { permit { permit-list 64000:40; } } } } } } admin@ncs(config)# tag add devices template community-list ned-id cisco-ios-cli-3.0 config ip community-list replace admin@ncs(config)# commit Commit complete. admin@ncs(config)# show full-configuration devices template | display curly-braces template community-list { config { ios:ip { /* Tags: replace */ community-list { standard test1 { permit { permit-list 64000:40; } } } } } } ``` Different tags can be added across the template tree. If we now apply the template to the device `c0` which already have community lists, the following happens: ```cli admin@ncs(config)# show full-configuration devices device c0 \ config ios:ip community-list devices device c0 config ios:ip community-list 1 permit ios:ip community-list 2 deny ios:ip community-list standard s permit ios:ip community-list standard test1 permit 64000:40 ! ! admin@ncs(config)# devices device c0 apply-template \ template-name community-list admin@ncs(config)# show configuration devices device c0 config no ios:ip community-list 1 permit no ios:ip community-list 2 deny no ios:ip community-list standard s permit ! ! ``` Any existing values in the list are replaced in this case. The following tags are available: * `merge` (default): the template changes will be merged with the existing template. * `replace`: the template configuration will be replaced by the new configuration. * `create`: the template will create those nodes that do not exist. If a node already exists this will result in an error. * `nocreate`: the merge will only affect configuration items that already exist in the template. It will never create the configuration with this tag, or any associated commands inside it. It will only modify existing configuration structures. * `delete`: delete anything from this point. Note that a template can have different tags along the tree nodes. A problem with the above template is that every value is hard-coded. What if you wanted a template where the `community-list` name and `permit-list` value are variables passed to the template when applied? Any part of a template can be a variable, (or actually an XPATH expression). We can modify the template to use variables in the following way: ```cli admin@ncs(config)# no devices template community-list config ios:ip \ community-list standard test1 admin@ncs(config)# devices template community-list config ios:ip \ community-list standard \ {$LIST-NAME} permit permit-list {$AS} admin@ncs(config-permit-list-{$AS})# commit Commit complete. admin@ncs(config-permit-list-{$AS})# top admin@ncs(config)# show full-configuration devices template devices template community-list config ios:ip community-list standard {$LIST-NAME} permit permit-list {$AS} ! ! ! ! ``` The template now requires two parameters when applied (tab completion will prompt for the variable): ```cli admin@ncs(config)# devices device-group all apply-template template-name community-list variable { name LIST-NAME value 'test2' } variable { name AS value '60000:30' } admin@ncs(config)# commit ``` Note, that the `replace` tag was still part of the template and it would delete any existing community lists, which is probably not the desired outcome in the general case. The template mechanism described so far is "fire-and-forget". The templates do not have any memory of what happened to the network, or which devices they touched. A user can modify the templates without anything happening to the network until an explicit `apply-template` action is performed. (Templates are of course, as all configuration changes, applied as a transaction). NSO also supports service templates that are more advanced in many ways, more information on this will be presented later in this guide. Also, note that device templates have some additional restrictions on the values that can be supplied when applying the template. In particular, a value must either be a number or a single-quoted string. It is currently not possible to specify a value that contains a single quote ('). ### Policies To make sure that configuration is applied according to site or corporate rules, you can use policies. Policies are validated at every commit, they can be of type `error` that implies that the change cannot go through or a `warning` which means that you have to confirm a configuration that gives a warning. A policy is composed of: 1. Policy name. 2. Iterator: loop over a path in the model, for example, all devices, all services of a specific type. 3. Expression: a boolean expression that must be true for every node returned from the iterator, for example, SNMP must be turned on. 4. Warning or error: a message displayed to the user. If it is of the type warning, the user can still commit the change, if of type error the change cannot be made. An example is shown below: ```cli admin@ncs(config)# policy rule class-map Possible completions: error-message Error message to print on expression failure expr XPath 1.0 expression that returns a boolean foreach XPath 1.0 expression that returns a node set warning-message Warning message to print on expression failure admin@ncs(config)# policy rule class-map foreach /devices/device \ expr config/ios:class-map[name='a'] \ warning-message "Device {name} must have a class-map a" admin@ncs(config-rule-class-map)# top admin@ncs(config)# commit Commit complete. admin@ncs(config)# show full-configuration policy policy rule class-map foreach /devices/device expr config/ios:class-map[ios:name='a'] warning-message "Device {name} must have a class-map a" ! ``` Now, if we try to delete a `class-map` `a`, we will get a policy violation: ```cli admin@ncs(config)# no devices device c2 config ios:class-map match-all a admin@ncs(config)# validate Validation completed with warnings: Device c2 must have a class-map a admin@ncs(config)# commit The following warnings were generated: Device c2 must have a class-map a Proceed? [yes,no] yes Commit complete. admin@ncs(config)# validate Validation completed with warnings: Device c2 must have a class-map a ``` The `{name}` variable refers to the node set from the iterator. This node-set will be the list of devices in NSO and the devices have an attribute called 'name'. To understand the syntax for the expressions a pipe target in the CLI can be used: ```cli admin@ncs(config)# show full-configuration devices device c2 config \ ios:class-map | display xpath /ncs:devices/ncs:device[ncs:name='c2']/ncs:config/ \ ios:class-map[ios:name='cmap1']/ios:prematch match-all ... ``` To debug policies look at the end of `logs/xpath.trace`. This file will show all validated XPATH expressions and any errors. ``` 4-Sep-2014::11:05:30.103 Evaluating XPath for policy: class-map: /devices/device get_next(/ncs:devices/device) = {c0} XPath policy match: /ncs:devices/device{c0} get_next(/ncs:devices/device{c0}) = {c1} XPath policy match: /ncs:devices/device{c1} get_next(/ncs:devices/device{c1}) = {c2} XPath policy match: /ncs:devices/device{c2} get_next(/ncs:devices/device{c2}) = false exists("/ncs:devices/device{c2}/config/class-map{a}") = true exists("/ncs:devices/device{c1}/config/class-map{a}") = true exists("/ncs:devices/device{c0}/config/class-map{a}") = true ``` Validation scripts can also be defined in Python, see more about that in [Plug-and-Play Scripting](https://nso-docs.cisco.com/guides/nso-6.3/operation-and-usage/operations/plug-and-play-scripting). ### Out-of-band Changes, Transactions, and Pre-Provisioning In reality, network engineers will still modify configurations using other tools like out-of-band CLI or other management interfaces. It is important to understand how NSO manages this. The NSO network simulator supports CLI towards the devices. For example, we can use the IOS CLI on say `c0` and delete a `permit-list`. From the UNIX shell, start a CLI session towards `c0`. ```bash $ ncs-netsim cli-i c0 c0> enable c0# configure Enter configuration commands, one per line. End with CNTL/Z. c0(config)# show full-configuration ip community-list ip community-list standard test1 permit ip community-list standard test2 permit 60000:30 c0(config)# no ip community-list standard test2 c0(config)# c0# exit $ ``` Start the NSO CLI again: ```bash $ ncs_cli -C -u admin ``` NSO detects if its configuration copy in CDB differs from the configuration in the device. Various strategies are used depending on device support: transaction IDs, time stamps, and configuration hash-sums. For example, an NSO user can request a `check-sync` operation: ```cli admin@ncs# devices check-sync sync-result { device c0 result out-of-sync info got: e54d27fe58fda990797d8061aa4d5325 expected: 36308bf08207e994a8a83af710effbf0 } sync-result { device c1 result in-sync } sync-result { device c2 result in-sync } admin@ncs# devices device-group core check-sync sync-result { device c0 result out-of-sync info got: e54d27fe58fda990797d8061aa4d5325 expected: 36308bf08207e994a8a83af710effbf0 } sync-result { device c1 result in-sync } ``` NSO can also compare the configurations with the CDB and show the difference: ```cli admin@ncs# devices device c0 compare-config diff devices { device c0 { config { ios:ip { community-list { + standard test1 { + permit { + } + } - standard test2 { - permit { - permit-list 60000:30; - } - } } } } } } ``` At this point, we can choose if we want to use the configuration stored in the CDB as the valid configuration or the configuration on the device: ```cli admin@ncs# devices sync- Possible completions: sync-from Synchronize the config by pulling from the devices sync-to Synchronize the config by pushing to the devices admin@ncs# devices sync-to ``` In the above example, we chose to overwrite the device configuration from NSO. NSO will also detect out-of-sync when committing changes. In the following scenario, a local `c0` CLI user adds an interface. Later the NSO user tries to add an interface: ```bash $ ncs-netsim cli-i c0 c0> enable c0# configure Enter configuration commands, one per line. End with CNTL/Z. c0(config)# interface FastEthernet 1/0 ip address 192.168.1.1 255.255.255.0 c0(config-if)# c0# exit $ ncs_cli -C -u admin admin@ncs# config Entering configuration mode terminal admin@ncs(config)# devices device c0 config ios:interface \ FastEthernet1/1 ip address 192.168.1.1 255.255.255.0 admin@ncs(config-if)# commit Aborted: Network Element Driver: device c0: out of sync ``` At this point, we have two diffs: 1. The device and NSO CDB (`devices device compare-config`). 2. The ongoing transaction and CDB (`show configuration`). ```cli admin@ncs(config)# devices device c0 compare-config diff devices { device c0 { config { ios:interface { FastEthernet 1/0 { ip { address { primary { + mask 255.255.255.0; + address 192.168.1.1; } } } } } } } } admin@ncs(config)# show configuration devices device c0 config ios:interface FastEthernet1/1 ip address 192.168.1.1 255.255.255.0 exit ! ! ``` To resolve this, you can choose to synchronize the configuration between the devices and the CDB before committing. There is also an option to over-ride the out-of-sync check: ```cli admin@ncs(config)# commit no-out-of-sync-check ``` Or: ```cli admin@ncs(config)# devices global-settings out-of-sync-commit-behaviour Possible completions: accept reject ``` As noted before, all changes are applied as complete transactions of all configurations on all of the devices. Either all configuration changes are completed successfully or all changes are removed entirely. Consider a simple case where one of the devices is not responding. For the transaction manager, an error response from a device or a non-responding device, are both errors and the transaction should automatically rollback to the state before the commit command was issued. Stop `c0`: ```bash $ ncs-netsim stop c0 DEVICE c0 STOPPED ``` Go back to the NSO CLI and perform a configuration change over `c0` and `c1`: ```cli admin@ncs(config)# devices device c0 config ios:ip community-list \ standard test3 permit 50000:30 admin@ncs(config-config)# devices device c1 config ios:ip \ community-list standard test3 permit 50000:30 admin@ncs(config-config)# top admin@ncs(config)# show configuration devices device c0 config ios:ip community-list standard test3 permit 50000:30 ! ! devices device c1 config ios:ip community-list standard test3 permit 50000:30 ! ! admin@ncs(config)# commit Aborted: Failed to connect to device c0: connection refused: Connection refused admin@ncs(config)# *** ALARM connection-failure: Failed to connect to device c0: connection refused: Connection refused ``` NSO sends commands to all devices in parallel, not sequentially. If any of the devices fail to accept the changes or report an error, NSO will issue a rollback to the other devices. Note, that this works also for non-transactional devices like IOS CLI and SNMP. This works even for non-symmetrical cases where the rollback command sequence is not just the reverse of the commands. NSO does this by treating the rollback as it would any other configuration change. NSO can use the current configuration and previous configuration and generate the commands needed to roll back from the configuration changes. The diff configuration is still in the private CLI session, it can be restored, modified (if the error was due to something in the config), or in some cases, fix the device. NSO is not a best-effort configuration management system. The error reporting coupled with the ability to completely rollback failed changes to the devices, ensures that the configurations stored in the CDB and the configurations on the devices are always consistent and that no failed or orphan configurations are left on the devices. First of all, if the above was not a multi-device transaction, meaning that the change should be applied independently device per device, then it is just a matter of performing the commit between the devices. Second, NSO has a commit flag `commit-queue async` or `commit-queue sync`. The commit queue should primarily be used for throughput reasons when doing configuration changes in large networks. Atomic transactions come with a cost, the critical section of the database is locked when committing the transaction on the network. So, in cases where there are northbound systems of NSO that generate many simultaneous large configuration changes these might get queued. The commit queue will send the device commands after the lock has been released, so the database lock is much shorter. If any device fails, an alarm will be raised. ```cli admin@ncs(config)# commit commit-queue async commit-queue-id 2236633674 Commit complete. admin@ncs(config)# do show devices commit-queue | notab devices commit-queue queue-item 2236633674 age 11 status executing devices [ c0 c1 c2 ] transient c0 reason "Failed to connect to device c0: connection refused" is-atomic true ``` Go to the UNIX shell, start the device, and monitor the commit queue: ``` $ncs-netsim start c0 DEVICE c0 OK STARTED $ncs_cli -C -u admin admin@ncs# show devices commit-queue devices commit-queue queue-item 2236633674 age 11 status executing devices [ c0 c1 c2 ] transient c0 reason "Failed to connect to device c0: connection refused" is-atomic true admin@ncs# show devices commit-queue devices commit-queue queue-item 2236633674 age 11 status executing devices [ c0 c1 c2 ] is-atomic true admin@ncs# show devices commit-queue % No entries found. ``` Devices can also be pre-provisioned, this means that the configuration can be prepared in NSO and pushed to the device when it is available. To illustrate this, we can start by adding a new device to NSO that is not available in the network simulator: ```cli admin@ncs(config)# devices device c3 address 127.0.0.1 port 10030 \ authgroup default device-type cli ned-id cisco-ios admin@ncs(config-device-c3)# state admin-state southbound-locked admin@ncs(config-device-c3)# commit ``` Above, we added a new device to NSO with an IP address local host, and port 10030. This device does not exist in the network simulator. We can tell NSO not to send any commands southbound by setting the `admin-state` to `southbound-locked` (actually the default). This means that all configuration changes will succeed, and the result will be stored in CDB. At any point in time when the device is available in the network, the state can be changed and the complete configuration pushed to the new device. The CLI sequence below also illustrates a powerful copy configuration command that can copy any configuration from one device to another. The from and to paths are separated by the keyword `to`. ```cli admin@ncs(config)# copy cfg merge devices device c0 config \ ios:ip community-list to \ devices device c3 config ios:ip community-list admin@ncs(config)# show configuration devices device c3 config ios:ip community-list standard test2 permit 60000:30 ios:ip community-list standard test3 permit 50000:30 ! ! admin@ncs(config)# commit admin@ncs(config)# devices check-sync ... sync-result { device c3 result locked } ``` As shown above, `check-sync` operations will tell the user that the device is southbound locked. When the device is available in the network, the device can be synchronized with the current configuration in the CDB using the `sync-to` action. ### About Conflicts Different users or management tools can of course run parallel sessions to NSO. All ongoing sessions have a logical copy of CDB. An important case needs to be understood if there is a conflict when multiple users attempt to modify the same device configuration at the same time with different changes. First, let's look at the CLI sequence below, user `admin` to the left, user `joe` to the right. ```cli admin@ncs(config)# devices device c0 config ios:snmp-server community fozbar joe@ncs(config)# devices device c0 config ios:snmp-server community fezbar admin@ncs(config-config)# commit System message at 2014-09-04 13:15:19... Commit performed by admin via console using cli. joe@ncs(config-config)# commit joe@ncs(config)# show full-configuration devices device c0 config ios:snmp-server devices device c0 config ios:snmp-server community fezbar ios:snmp-server community fozbar ! ! ``` There is no conflict in the above sequence, `community` is a list so both `joe` and `admin` can add items to the list. Note that user `joe` gets information about the user `admin` committing. On the other hand, if two users modify an ordered-by user list in such a way that one user rearranges the list, along with other non-conflicting modifications, and one user deletes the entire list, the following happens: ```cli admin@ncs(config)# no devices device c0 config access-list 10 joe@ncs(config)# move devices device c0 config access-list 10 permit 168.215.202.0 0.0.0.255 first joe@ncs(config)# devices device c0 config logging history informational joe@ncs(config)# devices device c0 config logging source-interface Vlan512 joe@ncs(config)# devices device c0 config logging 10.1.22.122 joe@ncs(config)# devices device c0 config logging 66.162.108.21 joe@ncs(config)# devices device c0 config logging 50.58.29.21 admin@ncs% commit System message at 2022-09-01 14:17:59... Commit performed by admin via console using cli. joe@ncs(config-config)# commit Aborted: Transaction 542 conflicts with transaction 562 started by user admin: 'devices device c0 config access-list 10' read-op on-descendant write-op delete in work phase(s) -------------------------------------------------------------------------- This transaction is in a non-resolvable state. To attempt to reapply the configuration changes made in the CLI, in a new transaction, revert the current transaction by running the command 'revert' followed by the command 'reapply-commands'. -------------------------------------------------------------------------- ``` In this case, `joe` commits a change to `access-list` after `admin` and a conflict message is displayed. Since the conflict is non-resolvable, the transaction has to be reverted. To reapply the changes made by `joe` to `logging` in a new transaction, the following commands are entered: ```cli joe@ncs(config)# revert no-confirm joe@ncs(config)# reapply-commands best-effort move devices device c0 config access-list 10 permit 168.215.202.0 0.0.0.255 first Error: on line 1: move devices device c0 config access-list 10 permit 168.215.202.0 0.0.0.255 first devices device c0 config logging history informational logging facility local0 logging source-interface Vlan512 logging 10.1.22.122 logging 66.162.108.21 logging 50.58.29.21 joe@ncs(config-config)# show config logging facility local0 logging history informational logging 10.1.22.122 logging 50.58.29.21 logging 66.162.108.21 logging source-interface Vlan512 joe@ncs(config-config)# commit Commit complete. ``` In this case, `joe` tries to reapply the changes made in the previous transaction and since `access-list 10` has been removed, the move command will fail when applied by the `reapply-commands` command. Since the mode is `best-effort`, the next command will be processed. The changes to `logging` will succeed and `joe` then commits the transaction. --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://nso-docs.cisco.com/guides/nso-6.3/operation-and-usage/operations/basic-operations.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
