Services

Create and manage service deployment.

The Services view is used to view, create, and manage services in your NSO deployment. The default Services view displays the existing services.

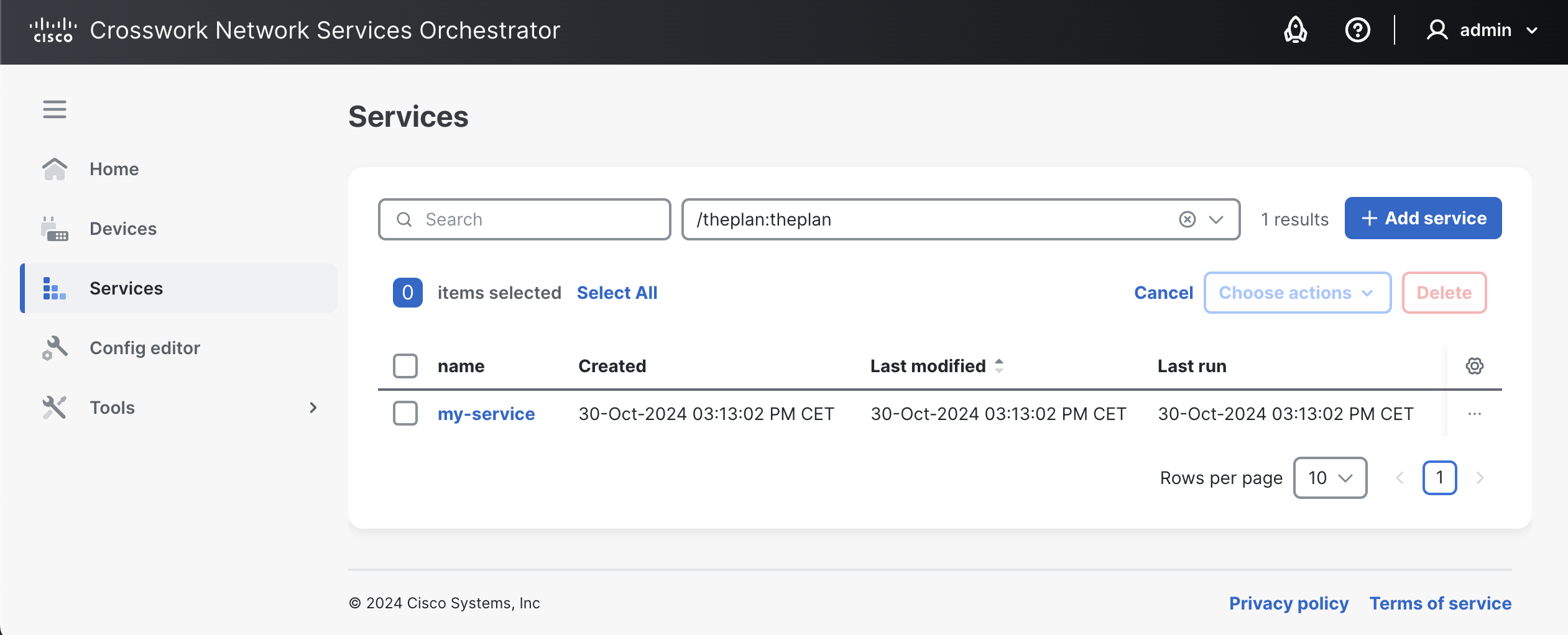

Services View

Search

If you have several services configured, you can use the Search to filter down results to the service of your choice. The search filter matches the entered characters to the service name and shows the results accordingly. Results are shown only for the service point that you have selected.

To filter the service list:

1. In the Select service type drop-down, select the service point to populate all the services under it.

2. Enter a partial or full name of the service you are searching for.

3. Press Enter.

Create a Service

To create and deploy a service:

1. In the Select service type drop-down, select the service point.

2. Click the Add service button. You will be redirected to the Configuration editor view.

3. Click the plus button.

4. In the Add new list item pop-up, enter the required information, which in this case is the name of the service.

5. Confirm the intent.

6. Configure additional service data in the Configuration editor view.

7. Review and commit the service to NSO in the Commit manager. Committing the service deploys it to NSO and displays it in the Services view.

Edit Service Configuration

Service configuration is viewed and carried out in the Configuration Editor. In the Services view, you can use the Modify in Config Editor option on the desired service to access its config in the Configuration Editor.

The Configuration editor view shows a host of options when configuring a service. You are expected to be well-versed with these options (and service concepts in general) before you delve into service configuration. Refer to the Services and Developing Services documentation for more information.

To rename a service:

1. Navigate to the service using the Configuration Editor and access the Edit config tab.

2. Select the service in the list using the checkbox.

3. Click the pencil icon.

4. Rename the service in the pop-up.

5. Commit the change in the Commit manager.

To edit service configuration:

1. Navigate to the service using the Configuration Editor and access the Edit config tab.

2. Click the service name in the list.

3. Make the changes.

4. Commit the changes in the Commit manager.

The other two tabs, i.e., Config and Operdata can be used respectively to view the service configuration and operational data.

Apply an Action on a Service

You can apply actions on a service from the Services view or the Configuration editor.

Start by selecting the service point to populate all services under it and then follow the instructions below:

From the Services View

To apply an action on a service:

1. On the desired service in the list, click the more options button.

2. Choose the preferred action from the list, i.e., Re-deploy, Un-deploy, Check sync, Deep check sync, or get modifications.

The Check sync action can be run on multiple services at once by selecting them using the checkbox and then running the action using the Choose actions button.

Actions Possible in the Services View

Available actions include Re-deploy, Un-deploy, Check sync, Deep check sync, and get modifications. See Lifecycle Operations for the details of these actions.

The Modify in Config Editor and Delete are GUI-specific operations accessible on the service row.

From the Configuration Editor -> Actions Tab

View Service Details

To view details of a service:

1. In the Select service type drop-down, select the service point.

2. Click the desired service. This opens up the service details view.

3. Browse service details using the following tabs:

   • Details

   • Plan

   • Log

Delete a Service

To delete a service instance:

1. In the Select service type drop-down list, select the service point.

2. Select, using the checkbox, the service to be deleted. You can select multiple services at once.

3. Click Delete.

4. Confirm the intent in the pop-up.

5. Review and commit the change in the Commit manager.

To skip the Commit Manager review, use the Commit changes directly option in the Delete service instance pop-up.
