The preferred way of making changes in the network is to perform all changes through NSO, which keeps the NSO copy of device configurations up-to-date (in sync) at all times. This approach has many benefits, as it allows NSO to:
Avoid making provisioning decisions based on stale data
Provide a single pane of glass to network configuration
Act as a network source of truth
Better aid in troubleshooting scenarios
Provide improved performance, and
Expose advanced compliance and reporting capabilities

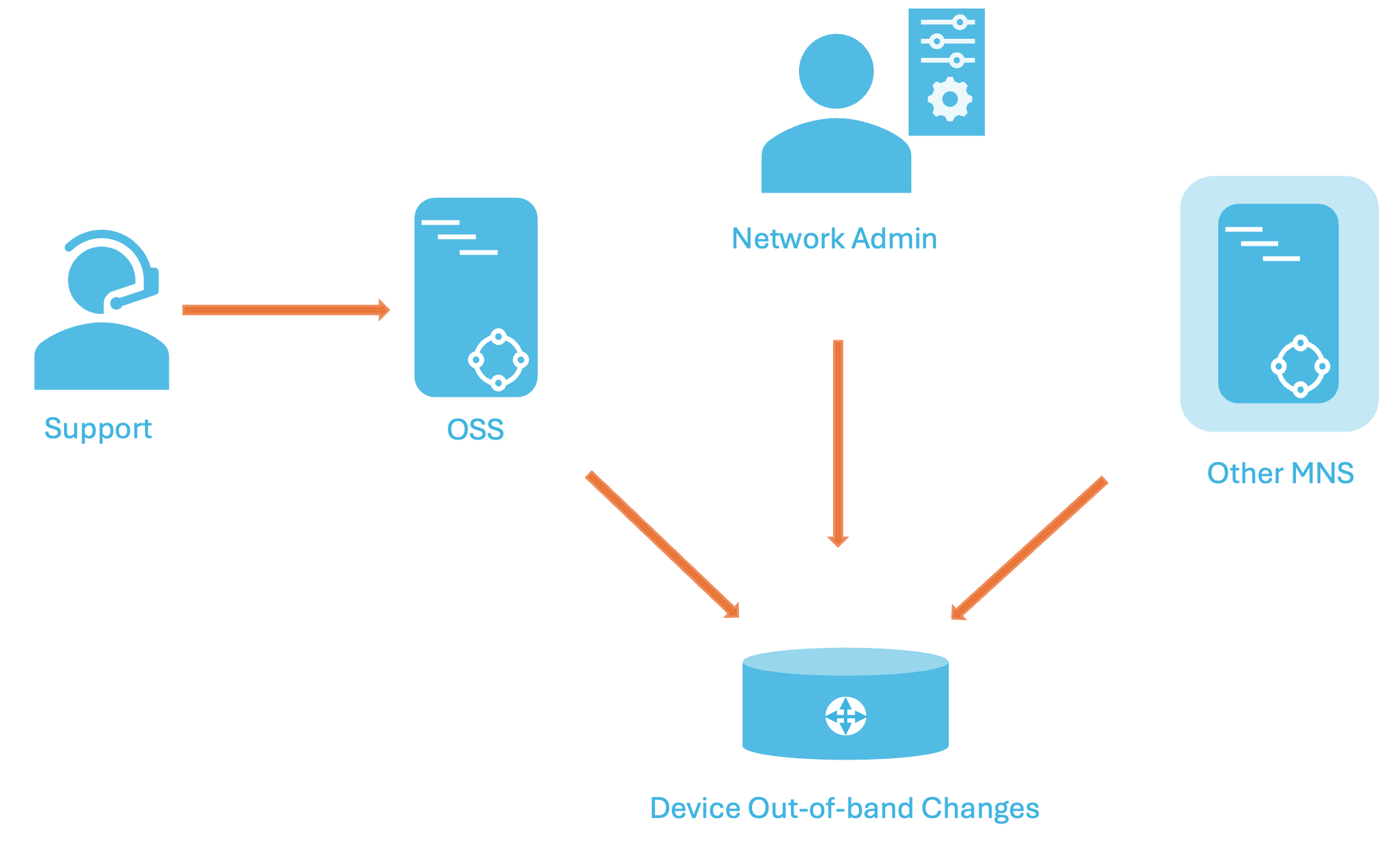

However, in some situations, such setup is undesirable or not possible due to historic, organizational, or other reasons. While an organization may decide to forgo most of these benefits by managing the network through multiple systems, it is essential for NSO provisioning code to work with current data.

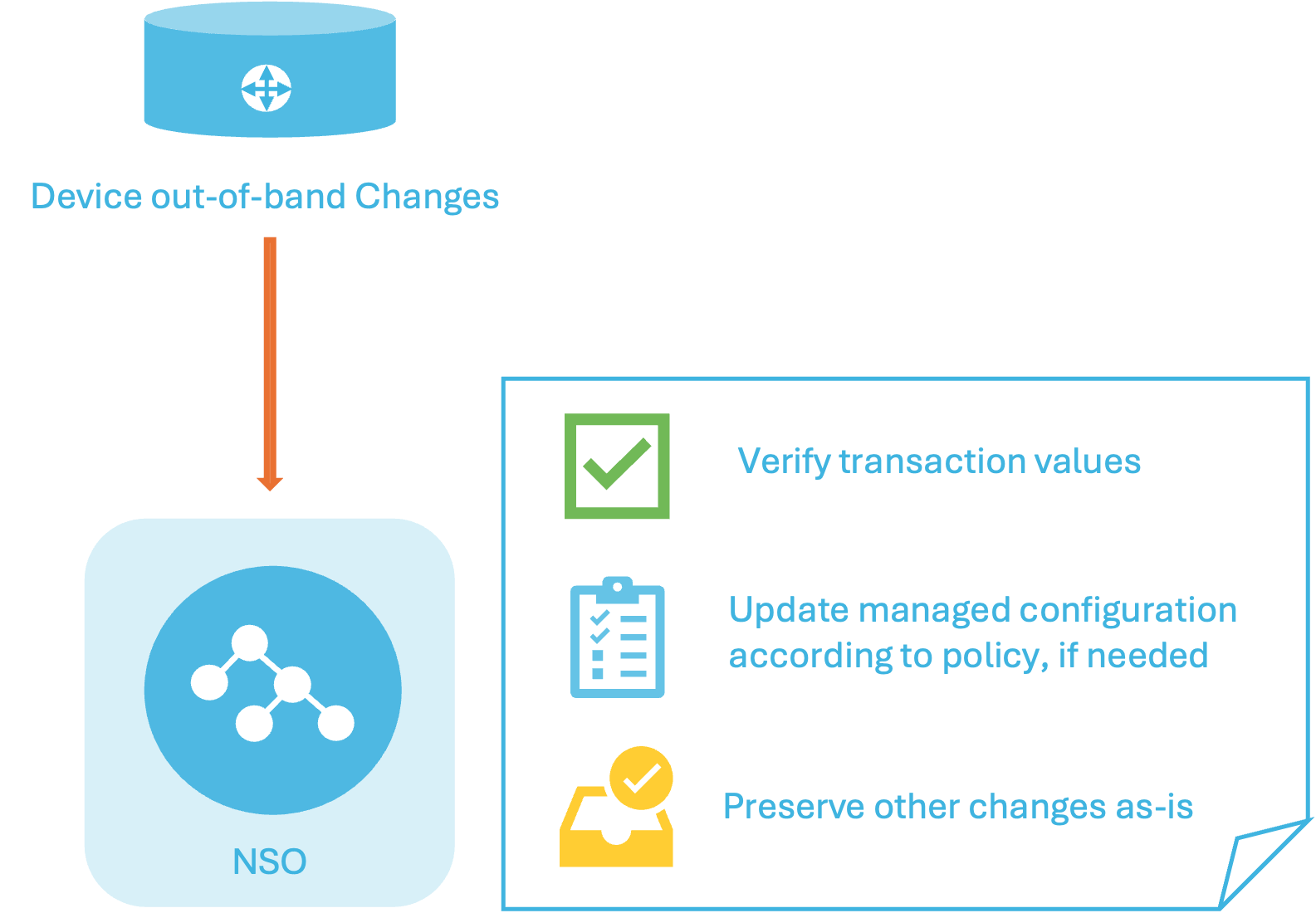

To better allow coexistence with other systems and processes that manage the same devices, NSO 6.5 introduces an innovative, patent-pending approach to the so-called "out-of-band" changes. Out-of-band changes are changes to NSO-managed devices not done through NSO. From a high-level perspective, this approach consists of:
"Ships passing in the night" handling of configuration not relevant to NSO-managed parts
Verification of data used in provisioning decisions prior to being pushed out to the network, and
Policy-based retention of changes by other systems and agents on NSO-managed configuration
It now becomes possible to manage a network device by never doing a sync-from/sync-to operation (in practice the first sync-from may still be desirable to allow reading from NSO). At the same time, special-purpose pre-provisioning checks become unnecessary for the majority of cases, as NSO verifies the correctness of data used in the transaction.
Such an approach allows NSO to use targeted correctness checks that have another benefit when used with devices which have huge configurations, such as various controllers. If only small parts of the configuration are relevant to NSO, the checks can be optimized. Limiting the checks to only the required parts allows the system to scale with the extent of the change, not the size or time-complexity of producing the full device configurations.
confirm-network-stateHandling out-of-band changes requires NSO to make additional checks and perform additional processing when provisioning network changes, so this functionality is opt-in. The first option to invoke the out-of-band processing machinery is to use the commit confirm-network-state commit variant, which takes effect for the current commit only.
This option is great for testing out different scenarios and getting familiar with the out-of-band features of NSO. In addition to commit, there are other commands that can also be confirm-network-state enabled, such as devicesync-from and service re-deploy.
However, the recommended way for normal, day-to-day use is to enableconfirm-network-state for a set of devices through device settings. For example:
Or:
Or:
Commit and other operations then no longer require using theconfirm-network-state option explicitly; it is enabled automatically for those devices.
Once NSO uses confirm-network-state for a device change, it no longer checks device sync status, so the commit may go through even if parts of device configuration are out-of-sync. But NSO keeps track of all reads in a given transaction and then verifies that these values (which were presumably used to influence the provisioning decisions) remain the same on the device. Behind the scenes, this mechanism uses the same transaction read-set that is also used for concurrency checks.
For example, let's say you want to set interface MTU to at least 1520 with a Python script:
Using the confirm-network-state-enabled commit ensures that the script does not overwrite values previously set out of band:
Note that the failure of the script in this scenario is expected; the script should retry the operation once the out-of-band changes are inspected and either accepted with a (partial) sync-from, or rejected with a sync-to. If, instead, this was service code, NSO would retry the operation automatically with the updated data.
If the commit is successful, it includes the out-of-band changes that NSO found. For example, setting a value may trigger validating a YANG must expression, requiring NSO to read additional configuration from the device for the purpose of verification. If this configuration has changed out of band, NSO will validate the commit with the new data (the must expression must be satisfied) and include the change with the commit.
Including the out-of-band changes with the commit allows you to revert the whole operation, if necessary, and ensures CDB consistency. After commit, the CDB contains the updated configuration for the parts that affected provisioning, while safely ignoring other out-of-band changes.
It also enables you to preview the out-band-changes you are bringing in as part of the commit dry-run, illustrated in the following output.
The not-overwriting functionality is shared with commit no-overwrite and ensures provisioning code in NSO works with up-to-date data. The difference between the two is that confirm-network-state also updates the CDB while evaluating service out-of-band policies for the relevant services.
The confirm-network-state mode of operation shows its true power when used in combination with services. Services in NSO, through service mapping code and templates, manage the required network configuration. NSO knows what device configuration belongs to which service through the backpointer references and can therefore detect when out-of-band changes are made to a configuration that belongs to a service.

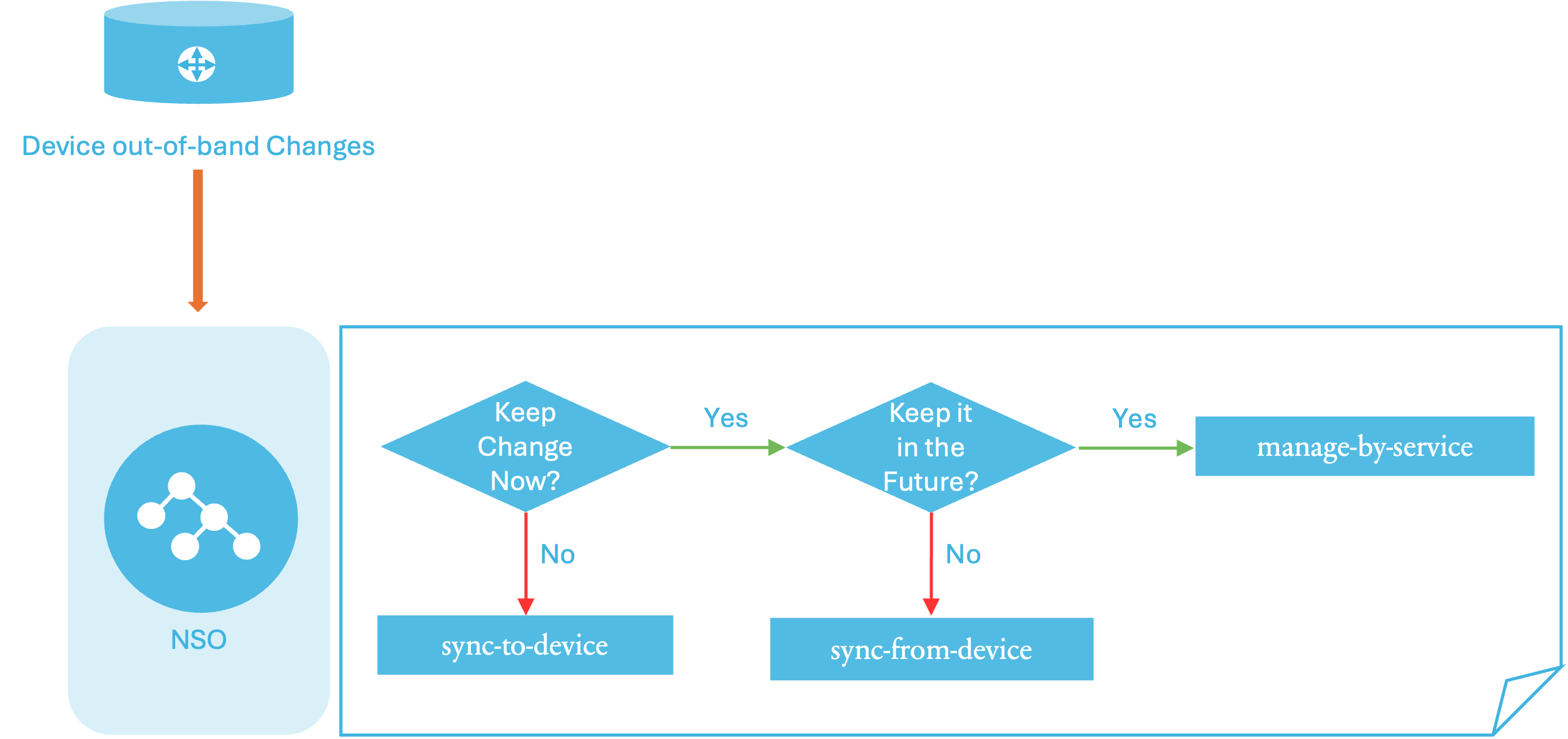

When NSO detects such a change, the question becomes what to do with it. The answer depends on the service and on the kind of change; some changes need to be accepted and others rejected. The service out-of-band policy specifies how the change is to be handled for a specific case.
The service policy is defined per service type (servicepoint) and contains a set of rules. For example:
Each rule defines an action NSO should take when encountering an out-of-band change at the given device path. The paths in the preceding printout are relative to /devices/device/config and tell NSO:
We allow other systems or operators to change MTU for interfaces managed by the iface service; by specifying sync-from-device, NSO copies the new device value to CDB. This is a good choice for values that are mostly unrelated to the service and unlikely to break it.
We reject changes to the IP address on the interface with sync-to-device, making NSO revert the change from the other system back to what is in the CDB (usually generated by the service mapping). This is a good choice for values that are vital for the correct operation of the service.
The example also shows how to differentiate between the type of change (operation); is the changed configuration node newly introduced (at-create), removed (at-delete), or has it gotten a new value (at-value-set)? Theat-create operation makes little sense for configuration that is provisioned by the service (the configuration obviously already exists) but is useful when additional configuration parameters are introduced under service-created ones. Additionally, at-create might be used when a service deletes device configuration which is then introduced back out of band.
Using the type of change allows you to express more complicated policies. For example, suppose the iface service really requires just some IP address on the interface, not necessarily the one it initially provisioned. As it does not matter what particular IP address is used, it can be changed out of band, as long as there is one. You can describe this with a rule, such as:
This, however, brings up another question: what should happen if you redeploy the service? Should NSO use the service-provided IP or should the out-of-band configured value be used instead? With the sync-from-device policy action, NSO overwrites the out-of-band value with the service-provided one. Instead, if the service should keep the out-of-band value, use the manage-by-service policy action, for example:
Specifying manage-by-service not only updates device configuration in the CDB with the out-of-band value, it also adds the value under service instance's out-of-band changes (also called extra operations). NSO takes these changes into account when calculating service configuration after mapping code runs. It allows the service to preserve an out-of-band value during a redeploy. Additionally, it ties the value to the lifecycle of the service; if the service is deleted, so is the out-of-band configuration.
Consider a setup from $NCS_DIR/examples.ncs/service-management/confirm-network-state, started by make demo, with the following out-of-band policy:
Initially, the service provides some device configuration:
At some later point in time, perhaps after a support call from a customer, a technician changes a number of things either directly on the device, or through some other system:
If you now perform sync-from, the out-of-band policy will get processed and do the following:
Re-provision the GigabitEthernet0/1 IP address due to rule #2 at-delete: sync-to-device.
Keep the MTU at 1520 due to rule #1 at-create: sync-from-device.
Keep the GigabitEthernet0/2 IP address due to rule #2 at-value-set: manage-by-service.
Tie the GigabitEthernet0/2 IP to the service lifecycle.
To see the last part take effect, you can inspect the service modifications:
The difference between sync-to-device and manage-by-service is also pronounced when you remove the service:
The MTU setting is left behind since it is not tied to the lifecycle of the service. But note that, if the service had initially created the container in which it is configured, it would get removed as well when the container would be removed.
On the other hand, the new IP address for instance2 GigabitEthernet0/2 is gone with the service, since it is tied to the service lifecycle according to the policy.
The service out-of-band policy is part of the NSO dynamic configuration, allowing an operator to tailor it to their needs. However, a service designer may already foresee some common scenarios where out-of-band handling of data is beneficial and provide a default out-of-band policy for their service.
NSO populates the service point entry under /services/out-of-band/policy with the service package defined default policy unless an entry is already present. The operator is then free to change this policy as they see fit. (But note that policy changes take effect after the policy is committed, not during the same transaction.)
To revert back to the default service-provided policy, an operator must delete the whole service point entry from /services/out-of-band/policy. Note that this is different from deleting all the rules from policy for a service point, which actually represents an empty policy (effectively sync-from-device).
A service developer defines the default policy for their service type in YANG. It has almost the same structure as the policy configuration in NSO, but uses YANG statements and is defined on the top level of a YANG (sub)module. For example:
NSO processes the out-of-band data with the service policy when:
NSO performs a device operation that is confirm-network-state-enabled (either through the command itself or participating device setting), and
NSO finds out-of-band data that is related to the service.
This is an optimization that allows NSO to no longer request or process parts of device configuration which are not related to the current operation. To ensure all current out-of-band data for a device is processed, you can invoke aconfirm-network-state-enabled sync-from for this device, such as:
When NSO encounters out-of-band data, it checks if this data resides in a part of configuration that is managed by one or more services. If that is the case, NSO uses backpointer references to identify individual service instances and the corresponding servicepoints. For each service, NSO searches the out-of-band policy rules for that servicepoint and handles the change according to specified action.
In particular, NSO compares rules and checks for the best match rule, where:
Rule's path matches node or one of its parents; longer matches are checked first. For example, path ios:interface/GigabitEthernet/ip is tested before its parent ios:interface/GigabitEthernet.
Rule must define an action for the type of change (operation) to match. For example, a rule without at-delete does not match an out-of-band delete.
If multiple rules are found, NSO checks their priority value; numerically lower values are matched first.
If filter-expr of a rule is set, it must evaluate true to match.
If no matching rule is found at all, sync-from-device is used as a fallback.
For example, consider the following rule set:
When a device's GigabitEthernet0/2 IP address is changed (value-set), say from 10.2.2.3 to 10.2.2.5, and NSO starts processing the rule set, it selects themanage-by-service action for this change because:
Rule 1 has a matching path but no at-value-set action, so it does not match.
Rule 2 also has a matching path but filter-expr does not match.
Rule 3 matches a parent path with priority 2.
Rule 4 matches the same parent path with priority 1 and is selected over priority 2 rule.
To get more detailed information about how the running system processes out-of-band changes, you can enable and set the level forout-of-band-policy-log in ncs.conf.
Note that path in the policy rule definition is a special variant of YANGinstance-identifier that may be absolute or relative to/devices/device/config. As such, it is limited to selecting data nodes, and predicates can only be used for selecting keys.
On the other hand, filter-expr can specify a full XPath 1.0 expression that allows fine-grained selection of which rule applies where. It also supportsfilter-expr-specific extensions to the XPath language in the form of predefined variables and additional functions.
The expression is evaluated with the path of the out-of-band-changed node as the current XPath context and NSO data root as XPath root. Note that the expression operates on the values in the current transaction, that is, values that NSO sees. If you wish to access the changed values, that is "new" device values, you need to use a special XPath function oob:context().
Say an IP address changes from 10.2.2.3 to 10.2.2.8 out-of-band on the device. Then:
.
10.2.2.3
oob:context()
10.2.2.8
Also note that . refers to the currently-processing changed node, which may be a sub-node of the rule's path value, for example it could beip/address/primary/address even though path points to ip/address.
Additional variables supported by the filter expression:
SERVICE
Path to the service instance the rule is evaluating for. Example use: $SERVICE/name = 'instance1'.
RULE_PATH
path value of the rule that is evaluating.
Additional functions supported by the filter expression:
oob:is-leaf([nodeset])
Check if specified nodes, or the current node when nodeset is not specified, are leaves. Returns boolean.
oob:is-service-data([nodeset])
Check if specified nodes, or the current node when nodeset is not specified, are configured by service. Allows to easily differentiate nodes that are in addition to what service provisions. Returns boolean.
oob:rule-paths()
Rule's path selector evaluated for the current change. Useful for lists, where the rule's path typically refers to all list items, but oob:rule-paths() selects the one with the change. Returns nodeset with one node.
oob:context([nodeset])
Use the out-of-band version of data when evaluating the specified nodes or the current node when nodeset is not specified.
oob:rule-paths() perhaps requires an example to explain fully. A typical use case for this function is to more easily reference one specific parent of a changed node. Suppose a service configures BGP routing and you want to distinguish between BGP neighbors that are owned by the service versus those that are added out of band. The following rule would match all kinds of out-of-band changes but only for service-provisioned BGP neighbors:
For a change of .../bgp[as-no='65000']/neighbor[id='192.168.1.1']/remote-as, the oob:rule-paths() would produce a node.../bgp[as-no='65000']/neighbor[id='192.168.1.1']. The filter expression is similar to oob:is-service-data(current()/..) but also works for nested nodes under the BGP neighbor, not just direct children.
Using manage-by-service in an out-of-band policy ties an out-of-band change to a service instance and instructs NSO FASTMAP algorithm to take the change into account. FASTMAP treats the out-of-band changes as additional configuration, applied on top of service mapping logic.
For example, when a service-defined value is changed out-of-band and the policy specifies manage-by-service, the change is preserved across service redeploys. To differentiate between data from service mapping and out-of-band data, additional parameters can be used with service get-modifications forward action:
only-out-of-band: display service-managed out-of-band configuration only.
only-service: display configuration produced by service mapping only.
with-out-of-band: display complete configuration, combined with out-of-band part.
For a service, where DHCP snooping rate-limit was configured out of band, the combined configuration might be:
The same is reflected in the service-meta-data of device configuration, which also shows origin of each part (note the Out-of-band: reference):
The lifecycle of the out-of-band parts is tied to the service lifecycle and the change is deleted when the service instance is deleted. But it is not truly managed in the sense of how mapping-generated configuration is managed.
For example, observe what happens when service interface parameter changes:
The configuration produced by service mapping uses the new interface, however, the out-of-band configuration is not migrated along with it:
In general, NSO cannot migrate the out-of-band changes on its own, since they may be inapplicable or even break the new service configuration. But in this specific case, the rest of the service configuration is removed from the interface, and DHCP snooping part would not be picked up by the service out-of band policy (if the change was done after the service update). While you can manually remove the residual GigabitEthernet0/1 configuration, a service re-deploy would reprovision it (unless you also detach out-of-band data). A simpler approach is to reevaluate out-of-band policy.
To avoid leftover configuration, or catch up with an updated out-of-band policy, you can instruct NSO to recompute service out-of-band changes according to the policy.
NSO will reapply the relevant policies if you use thecommit confirm-network-state re-evaluate-policies commit variant when updating the service instance. Continuing the previous example:
Since the out-of-band policy was reapplied, and the old interface is no longer part of the configuration that is provisioned by the service, its out-of-band configuration is gone.
If you have already committed the updated service instance withoutconfirm-network-state re evaluate-policies, or have just updated the out-of-band policy, you can perform the same through a service redeploy:
Another potential effect using re-evaluate-policies has, is bringing in existing configuration. Suppose the above service instance, instead of GigabitEthernet0/4, uses GigabitEthernet0/3 interface, which already has some pre-existing configuration (configuration before being provisioned for this service).
Observe that the IP address is not the one configured by the service mapping (10.1.2.3); the existing value is instead being treated as a service-managed out-of-band change (as defined by the policy).
Therefore, if you wish to retain out-of-band parts that are no longer under service-managed configuration, you need to migrate them manually first. But consider that updating the service to support this kind of configuration natively is a much better choice that will save you a lot of time and trouble in the future.
An alternative to confirm-network-state re-evaluate-policies for updating service out-of-band data are two service re-deploy reconcile actions:attach-non-service-config and detach-non-service-config.
Detach makes all current service-managed out-of-band data unmanaged. That is, it keeps the out-of band data but removes the references to the service from it. The out-of-band data behaves like it had a policy sync-from-device instead ofmanage-by-service.
You can use detach, for example, before removing a service in order to keep out-of-band changes.
On the other hand, attach performs similarly as confirm-network-state-enabled commit would for detected out-of-band data. It looks at all the service-owned configuration and finds parts that would stay if the service was removed (they have non-service refcounts). Then it makes these parts service managed out-of-band data.
You should use attach, instead of a regular re-deploy reconcile, when importing existing services to NSO. Using attach ensures the service also picks up out-of-band data according to policy.
Likewise, you can use attach to reattach configuration that you have previously, perhaps mistakenly, detached.
In addition, reconcile also supports discard-non-service-config, which allows you to discard all non-service-managed out-of-band changes.
To drop all out-of-band changes, not just unmanaged ones, and return the service to its pristine state, with only service-mapping-generated configuration, first detach out-of-band data, followed by a discard. For example:
In the example, both managed (ip dhcp snooping limit rate 10) and unmanaged (mtu 1520) out of-band changes are going to be dropped.
To globally enable out-of-band data processing described in this section, configure:
To enable it for a set of devices, use device profiles:
To enable it per individual device, configure:
Inspect out-of-band changes on a device without updating the CDB configuration:
CDB is updated automatically with referenced out-of-band data during a confirm-network-state-enabled commit. To manually update the CDB and process all out-of-band changes for a device, use device sync-from.
Inspect out-of-band policy for a service:
Inspect service-managed out-of-band changes for a service:
Reevaluate out-of-band policy (when updating service instance):
Reevaluate out-of-band policy during service redeploy:
Attach, detach, and discard out-of-band changes for a service:
